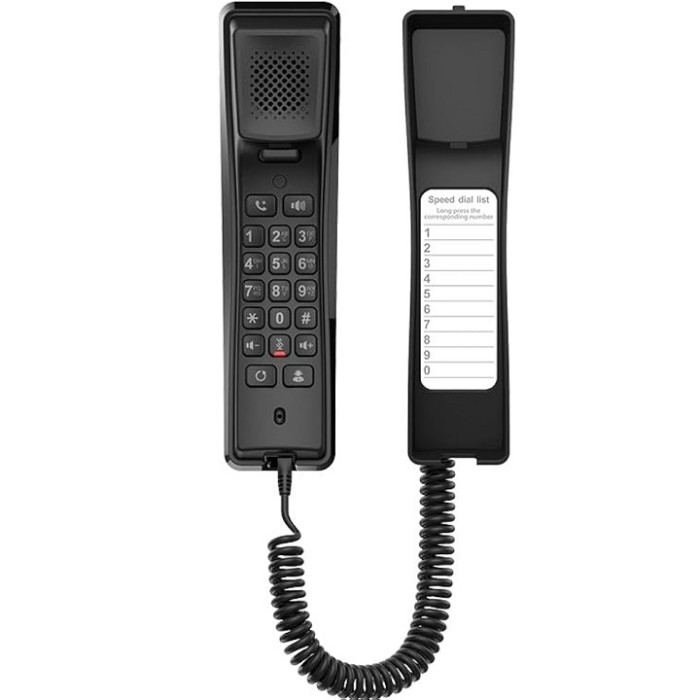

Fanvil H2U IP Phone
Fanvil H2U IP Phone
Specifications :
Generic
2 SIP Lines
HD Voice
PoE Enabled
Handset / Hands-free mode Intelligent DSS Keys Desktop/wall mount mode Optional External Power Supply
Phone Functions
Call logs (In/Out/Missed, Max support 600 records in the web)
Programmable DSS
Action URL / Active URI
Web dial
Call Functions
Call out / Answer
Mute / Unmute
Hands-free / Cancel hands-free
Call Hold / Resume
Speed Dial
Redial
Auto-Answering
3-way Conference
Hot Line
Hot desking
Audio
Narrowband Codec: G.711a/u, G.726, G.729A, iLBC
Wideband Codec: G.722, Opus
Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Network
Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x VPN: L2TP / OpenVPN
VLAN
QoS
RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Deployment & Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Firmware Upgrade Syslog
